Arado 234 B-1 Blitz Bomber - DWG - 1:6 Scale - Downloadable Plans. (Stock Code: 0109)

$120.24
No tax
Download a full-size sample in attachments, right below.
Quantity
In-stock



All plans are registered at www.workscopyright.com and cannot be resold.

  Security policy

I will always send a backup copy to your email. Search in SpamBox also.

  Download Policy

Payment approved, a download link is sent to your email. You have 3 authorized attempts.

  Return policy

Digital files and cannot be exchanged or returned, because the customer will always have a copy.

  DXF

DXF files are the simple conversion of the DWG file to DXF.

Downloadable Plans.

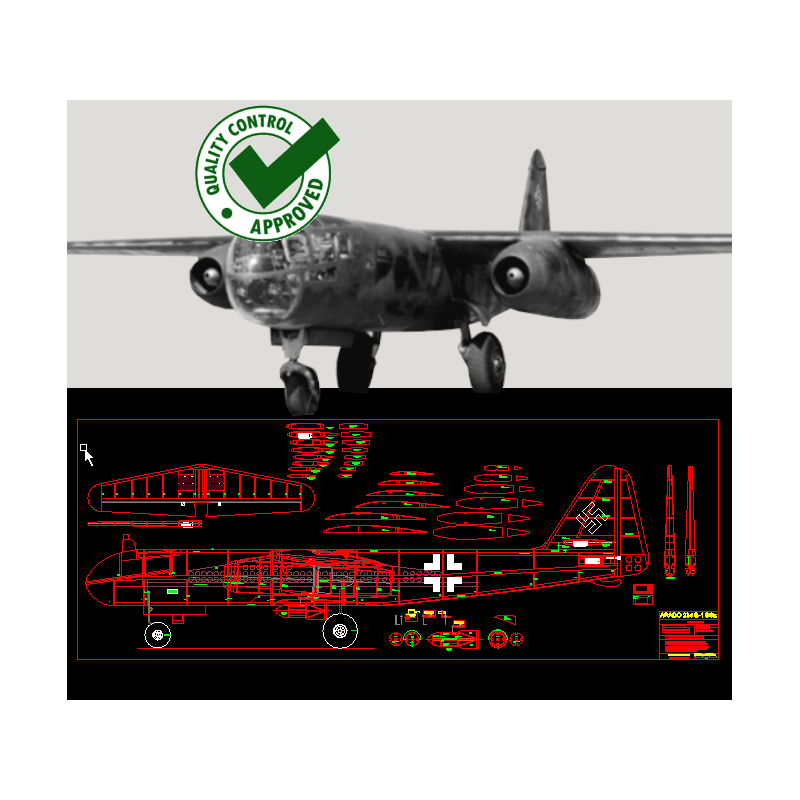

Arado 234 B-1 Blitz Bomber - 1:6 Scale - DWG - CAD - Details

Plans in 1:1 scale
Conventional balsa construction.
WingSpan: 234 cm (92")
Lenght: 211 cm (83")
Engine: 2 x EDF90 or similar
Radio: 5~8 Ch


Other technical data:

CG: 18.47 cm
NP: 23.36 cm
Wing Area: 7090.6 cm
Area stabilizer: 1283.5 cm
Estimated Weight: 12lb = 5444 grams
Stall speed: 7.7 mph / 12.4 km/h

THE PLANS INCLUDE
2 x Operational Booster for use of rocket motor E6 long Burn or similar, driven by radio to realism takeoff.
SC 500J BOMB Plans and complete system release bomb by radio command.

Does not include photos, magazine article or manual assembly.
Retractable landing gear: not included in the plans.

Size: 396 KB (405.504 bytes)


Requires WinRar to unpack.

[ DWG format ]

See the detailed assembly.

(Stock Code: 0109)
