Junkers Ju-EF128 - DXF - EDF-70 - Downloadable Plans. (Stock Code: 0357)
$150.00
2
 |
Download a full-size sample in attachments, right below. |
All plans are registered at www.workscopyright.com and cannot be resold.
Security policy
I will always send a backup copy to your email. Search in SpamBox also.
Download Policy
Payment approved, a download link is sent to your email. You have 3 authorized attempts.
Return policy
Digital files and cannot be exchanged or returned, because the customer will always have a copy.
DXF
DXF files are the simple conversion of the DWG file to DXF.
Downloadable Plans.

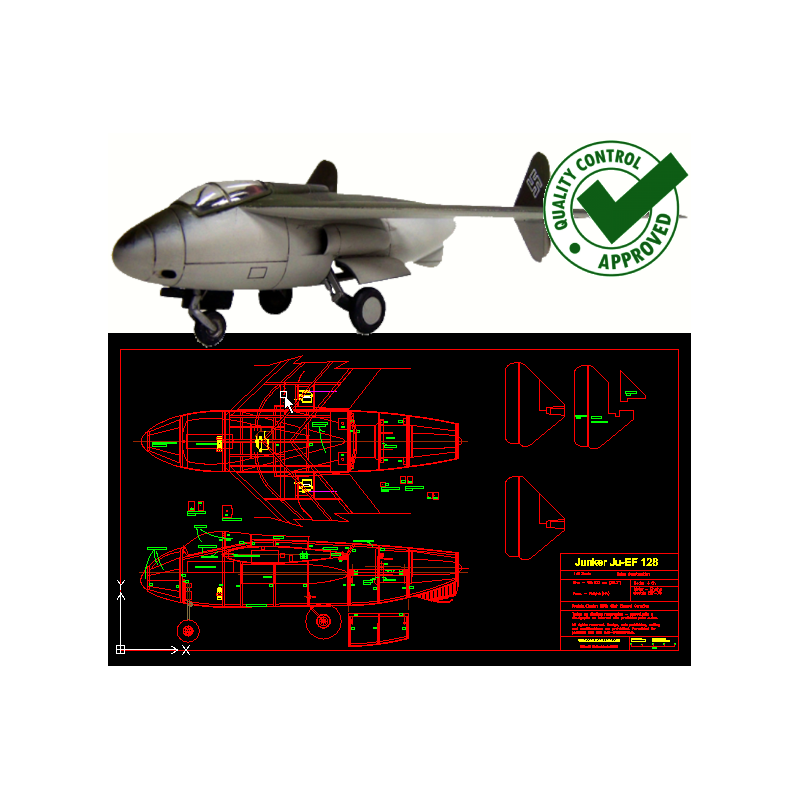

Junkers Ju EF128 - DXF - details
Plans in 1:1 scale
Conventional balsa/foam construction.
WingSpan: 100 cm (39,5")
Lenght: 79.8cm (31.5" )
Engine: EDF-70
4 channels
Size: 252 KB (258,048 bytes)
Description:This Junkers design was submitted for the Emergency Fighter Competition in Febuary 1945. The fighter had air intakes at the fuselage sides to divert the boundry-layer air flow to a vent outlet aft of the cockpit fairing. The wings were of wooden construction, swept back 45 degrees and had two small vertical fins and rudders on the wing trailing edges.
Requer WinRar para descompactar.
[ DXF Format ]
(Stock Code: 0357)
